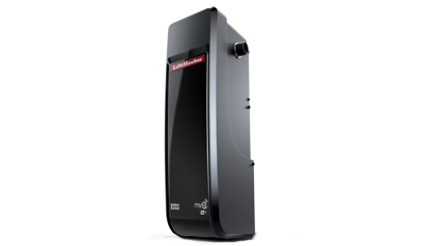

LiftMaster 8500W electric garage door opener
LiftMaster Logo

8500W

LiftMaster Logo

8500W

LiftMaster 8500W electric garage door opener

Features

The LiftMaster 8500W model is manufactured by Chamberlain Group. This model optimizes garage ceiling space overhead with is siding installation. If you want an extra storage space up above, have an oversized garage door, or even a cathedral ceiling, the 8500W LiftMaster model, a residential Jackshaft-type opener, is the perfectly engineered solution to fit your specific garage door opener requirements. It mounts easily on the wall (right or left side) beside the garage door, and comes with a remote 200-watt light that can be positioned anywhere in the garage. The powerful 24v DC motor allows for ultra-quiet operation, as well as a smooth start and finish of the door, with adjustable speed. Meets all UL325 requirements.

Fully equipped with must-have features including built in Wi-Fi® for smartphone control, MyQ® Remote LED light which can be installed anywhere in the garage, Integrated Battery Backup and the Automatic Garage Door Lock

  • Drive system: Jackshaft type
  • Horse power: DC
  • Voltage / Phase: 115V, 60 Hz
  • Remote Lighting System: A 1500 lumens (200 watts) LED light system that you install where necessary and that plugs directly into a standard electrical outlet.

The 8500W difference...

  • Specially designed for garages and unique applications that don’t allow for a traditional trolley-type garage door opener, such as garages with very low, cathedral or obstructed ceiling.
  • Ultra-quiet 24V DC motor performance.
  • Integrated battery backup ensures access even when the power's out.
  • For sectional doors only, up to 14 feet (4.2 m) high or 180 square feet (16.7 m2), 850 lbs (385,5 kg).


Warranty*: Lifetime on motor

* Other parts of the opener are guaranteed for five years (accessories are not covered by this warranty). Please refer to the owner manual for all details.

Standard security systems

Your security, our priority!

The Protector System®

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Opener light turns on automatically when The Protector System's infrared beam is broken.

LiftMaster Protector System (41A5034)

Interior manual release handle

This handle can be used to manually operate the garage door from the interior in the event of a power outage.

Interior Manual release handle

Security+ 2.0TM

  • Security+ 2.0 rolling code technology eliminates frequency interference and assures a new code is sent every time the remote control is used.
  • Patented PosiLock® system ensures the door remains securely locked when the garage door is closed.
Security+ 2.0

Cable Tension Monitor

Specifically designed to maintain accurate tension and eliminate "cable throw", which occurs when the cable slips off the drum.

Cable Tension Monitor

Power LockTM

Power Lock - once the garage door goes down, it's securely locked with the power lock, which is similar to a deadbolt and ensures the door cannot be forced open

Power Lock

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

The Protector System®

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Opener light turns on automatically when The Protector System's infrared beam is broken.

LiftMaster Protector System (41A5034)

Interior manual release handle

This handle can be used to manually operate the garage door from the interior in the event of a power outage.

Interior Manual release handle

Security+ 2.0TM

Security+ 2.0 rolling code technology assures a new code is sent every time the remote control is used.

Security+ 2.0 Logo

Cable tension monitor

Specifically designed to maintain accurate tension and eliminate "cable throw", which occurs when the cable slips off the drum.

Cable tension monitor

Power LockTM

Power Lock - once the garage door goes down, it's securely locked with the power lock, which is similar to a deadbolt and ensures the door cannot be forced open

Power Lock

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

Included in package

LiftMaster 8500W electric garage door opener
LiftMaster 8500W electric garage door opener
Integrated Battery Backup (485LM)
Integrated Battery Backup (485LM)
Smart Control Panel (880LMW)
Smart Control Panel (880LMW)
3-Buton remote control (893MAX)
3-button remote control (893MAX)
MyQ Remote LED Light (827LM)
MyQ Remote LED Light (827LM)
Automatic Garage Door Lock (841LM)
Automatic Garage Door Lock (841LM)
Cable tension monitor
Cable tension monitor (41A6104)
Protector system (41A5034)
Protector system (41A5034)

* Also included: a hardware bag for installation (includes all necessary hardware for installation)
